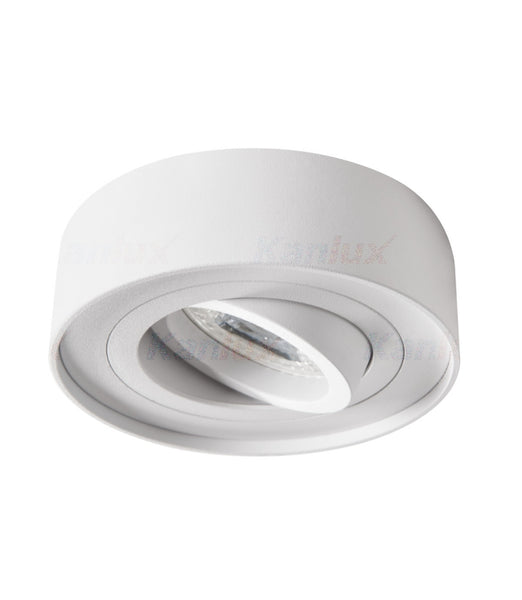

A mini version of the Kanlux BORD fixtures. An excellent alternative for those who want to use surface-mounted fixtures in suspended ceilings, as their installation method is the same as that of recessed eyelet fixtures. An additional advantage is the 30⁰ angle adjustment of the MINI BORD fixtures.
Nominal voltage [V] 12 AC; 12 DC; 220-240 AC
Maximum power [W] max 10
Gx5.3/GU10 shaft
IP 20 degree
Angle adjustment of the lighting fixture [°] 30
Basic information
EAN13 5905339287823
Color white
Housing material: aluminum alloy, steel
Place of application indoors
Weight and dimensions
Height [mm] 50
Diameter [mm] 98
Weight 200g
Product sales unit .
Bulk carton 50
Additional features
- Decorative ring without ceramic frame
Technical data
Nominal voltage [V] 12 AC; 12 DC; 220-240 AC
Decorative ring without ceramic frame
Color white
Maximum power [W] max 10
Gx5.3/GU10 shaft
Class of protection against electric shock II/III
Mounting location: recessed into the ceiling
IP 20 degree
Ambient temperature range to which the product can be exposed [°C] 5÷25
Angular adjustment of the lighting fixture in one axis
Angle adjustment of the lighting fixture [°] 30
Mounting hole size [mm] Ø85
The product is not suitable for covering with thermal insulation material.
The need to use self-shielding lamps
Minimum distance from the illuminated object 0.5 m
Light source not included
MR16/PAR16 light source
